1 DIRECTIONAL GF20 Roller Clutch Bearing 700RPM

Brand Name : SUMA

Model Number : GF20

Certification : ISO SGS

Place of Origin : CHINA

MOQ : 1

Price : USD50-USD200 PER PIECE

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 1000PCS Per Month

Delivery Time : 10-15 Days

Packaging Details : Carton Box

Product Name : One Way Clutch Bearing GF20

Material : GCr15 Bearing Steel

Rotation Speed : 700RPM

Unit Weight : 0.6Kg

Warranty : 1 Year

Size : 20*62*36mm

Torque Capacity : 188Nm

OEM : Accept

Contact Now

1 DIRECTIONAL GF20 Roller Clutch Bearing 700RPM

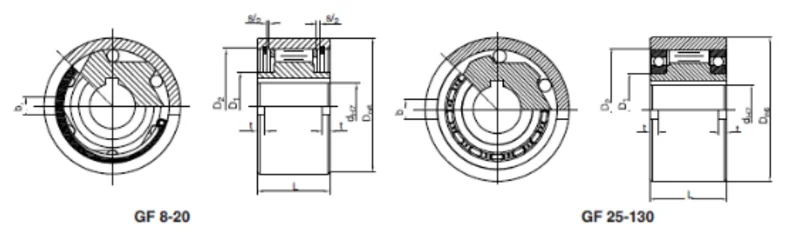

Dimensions and Capacities

1 DIRECTIONAL GF20 Roller Clutch Bearing 700RPM

Type dH7 Dn6 L s D1 D2 b t Weight Inner ring Outer ring TKN Drag torque
freewheels/ freewheels/
mm mm mm mm mm mm mm mm Kg overruns min-1 overruns min-1 Nm Ncm
GF 8 8 37 20 1 20 30 6 3 0.1 1000 1000 20 0.09
GF 9 9 37 20 1 20 30 6 3 0.1 1000 1000 20 0.09
GF 12 12 37 20 1 20 30 6 3 0.1 1000 1000 20 0.11
GF 15 15 47 30 1 26 37 7 3.5 0.3 900 900 78 0.15
GF 20 20 62 36 1 37 52 8 3.5 0.6 700 700 188 0.18
GF 25 25 80 40 - 40 68 9 4 1.2 2100 3600 250 0.36
GF 30 30 90 48 - 45 75 12 5 1.8 1700 3200 500 0.4
GF 35 35 100 53 - 50 80 13 6 2.4 1500 3000 680 0.6
GF 40 40 110 63 - 55 90 15 7 3.3 1200 2600 1115 0.84
GF 45 45 120 63 - 60 95 16 7 4 1000 2400 1500 0.94
GF 50 50 130 80 - 70 110 17 8.5 5.7 800 2100 2375 1.28
GF 55 55 140 80 - 75 115 18 9 6.5 750 2000 2500 1.5
GF 60 60 150 95 - 80 125 18 9 8.9 650 1900 4250 1.6
GF 70 70 170 110 - 95 140 20 9 13.5 550 1800 5875 3.6
GF 80 80 190 125 - 110 160 20 9 19 500 1600 10000 3.6
GF 90 90 215 140 - 120 180 24 11.5 27.2 450 1400 17350 6.8
GF 100 100 260 150 - 140 210 28 14.5 44.5 350 1300 19750 8.8
GF 130 130 300 180 - 160 240 32 17.5 68 250 1000 35000 12.5
